MR32-5Ⅱ

Dual spindle centering machine【MR32-5Ⅱ】

Dual spindle design for simultaneous processing of two workpieces, enhancing productivity
Precision CNC control system ensures high accuracy and repeatability
Servo motor driven spindles for smooth and reliable operations
User-friendly touch screen interface for easy operation and monitoring
Compact design suitable for space-constrained environments

Share products:

The MR32-5II is an advanced dual spindle CNC centering machine designed to deliver high precision and efficiency in processing cylindrical workpieces. With its dual spindle configuration, the MR32-5II allows for the simultaneous centering of two workpieces, significantly boosting throughput. The machine is equipped with a precision CNC control system and servo motor driven spindles, ensuring accurate and consistent results. Its intuitive touch screen interface simplifies operation and monitoring, making it accessible for operators of all skill levels. The compact design of the MR32-5II makes it ideal for workshops with limited space, offering both efficiency and precision in a small package.

Double spindle Swiss CNC lathe MR32-5II
System	Taiwan SYNTEC	Syntec210TB-A
	Control channel	Double channel
	Minimum setting unit	0.001mm
Machining	Max processing diameter	32 mm
	Max processing length at one time	With guide bush	260mm
		Without guide bush	1:2.5D（Dia:Lenth）
	Main spindle max drilling Dia	Main spindle axial	ER20	Φ13mm
			ER16	Φ10mm
			ER11	Φ7mm
	Main spindle max tapping Dia	Main spindle axial	ER20	M12
			ER16	M8
			ER11	M6
	Power head max drilling Dia	Radial	Φ10mm
	Power head max tapping Dia	Radial	M8
	Sub spindle max drilling Dia	Sub spindle axial	Φ10mm
	Sub spindle max tapping Dia	Sub spindle axial	M8
Tool	Tool seat arrangement	Upside tool seat
	Main spindle turning tool	6 pieces	6 pieces 16X16mm

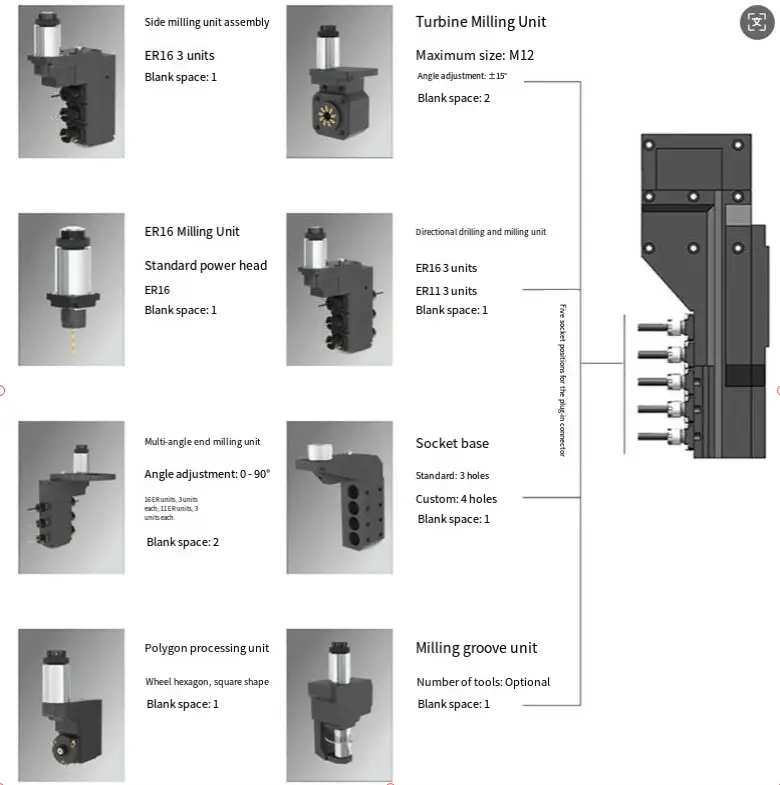

	Main spindle side roatry power head	5 pieces	5 pieces ER16
	Main spindle end face fixed tool seat	4 pieces	3 pieces ER11/ER16+1 piece ER20
	Sub spindle end face fixed tool seat	4 pieces	ER11/ER16
Main Spindle	Main/sub spindle type	Built-in oil-cooled electric spindle
	Main/sub spindle speed	8000rpm/min
	Main/sub spindle index	0.001°
	Main/sub spindle hole Dia	34mm
	Main/sub spindle center height	1060mm
Motor power	Main Spindle power (rated/maximum)	3.5kw/6.0kw
	Sub Spindle power (rated/maximum)	3.5kw/6.0kw
	Side rotary head motor power	1.7kw
	Side rotary head speed	5000rpm/min
	No. of moving axis	5 axis	X1、Y1、Z1、X2、Z2
	Rapid feeding speed	24m/min
	Moving axis motor power	0.75kw
Other	Parts receive device	Short bar	Parts conveyor collect parts
		Long bar	Sub spindle backside collect parts
	Power capacity	20kw
	Air pressure	Above 0.4MPa
	Cutting oil tank capacity	286L
	Machine size(LWH)	2.47m×1.6m×2.0m
	Lathe Weight	3880KG

What is the maximum workpiece diameter capacity for the MR32-5II?
- The maximum workpiece diameter capacity is typically around 32 mm, though exact specifications should be confirmed from the technical data.
How does the machine ensure high centering accuracy?
- The machine uses a high precision CNC control system and servo motor driven spindles to achieve accurate centering.
Is the MR32-5II suitable for automated production environments?
- Yes, the machine can be integrated into automated production lines due to its advanced CNC control system.
What type of user interface does the MR32-5II feature?
- The machine is equipped with an intuitive touch screen interface for easy operation and monitoring.
What are the space requirements for installing the MR32-5II?
- The machine’s compact design makes it suitable for environments with limited floor space.
Can the MR32-5II handle different types of workpieces?
- Yes, the machine is versatile and can handle various cylindrical workpieces within its specified diameter capacity.
