MA25-6S

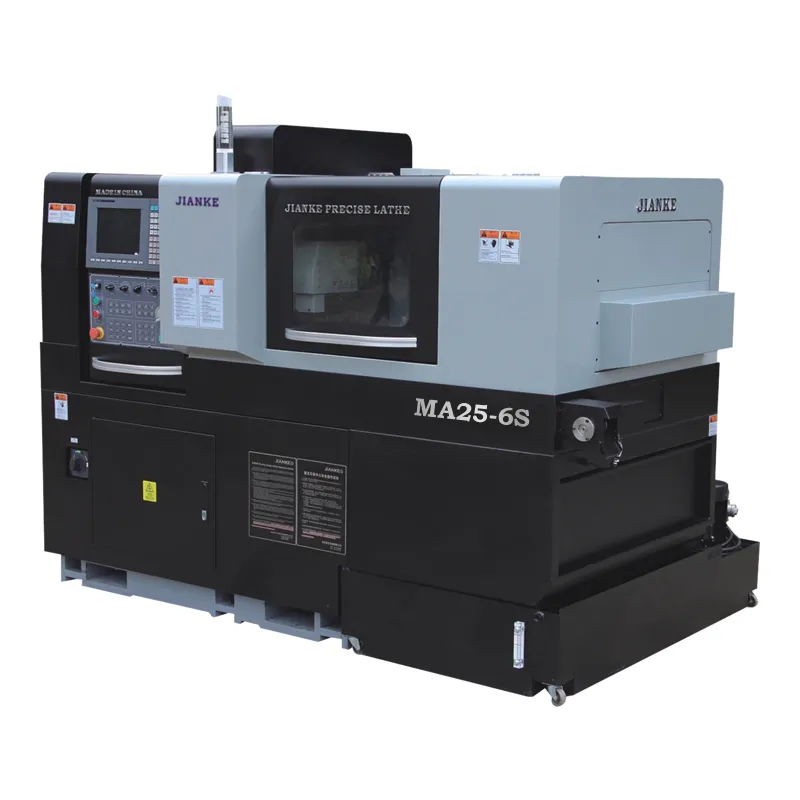

Dual spindle CNC centering machine MA25-6S

Dual spindle design allows for simultaneous processing of two workpieces, improving efficiency and productivity
6-axis CNC control system provides high precision and flexibility in operations
Servo motor driven spindles ensure smooth and reliable performance
User-friendly interface with a touch screen for easy operation and monitoring
Compact and robust design suitable for various industrial environments

Share products:

The MA25-6S is a sophisticated dual spindle CNC centering machine designed for high precision and efficient processing of cylindrical workpieces. Featuring a 6-axis CNC control system, the MA25-6S offers exceptional flexibility and precision, making it ideal for complex machining tasks. The dual spindle configuration allows for the simultaneous processing of two workpieces, significantly enhancing productivity. The machine is equipped with servo motor driven spindles for reliable performance and a user-friendly touch screen interface for intuitive operation. Its compact and robust design makes it suitable for a wide range of industrial applications.

Double Spindle Swiss CNC Lathe MA25-6S
System	Taiwan SYNTEC	Syntec210TB-A
	Control channels	Dual channel
	Minimum setting unit	0.001mm
Machining Ability	Max processing diameter	25 mm
	Maximum single feeding length	Rotary guide bush	195mm
	Maximum single feeding length	Without guide bush	1:2.5D（Dia:Length）
	Main spindle max drilling Dia	axial (main spindle)	Φ10mm
	Main spindle tapping Dia	axial	M8
	Rotary tools max drilling Dia	radial	Φ8mm
	Rotary tools max tapping Dia	radial	M6
	Sub spindle max drilling Dia	Axial (sub spindle)	Φ8mm
	Sub spindle max tapping Dia	axial	M6
Tools	Tool base arrangement	Upper row tool base
	Main spindle O.D. tools	6 pieces	116X16mm+512X12
	Main spindle side rotary live tools	4 pieces	2ER11+2ER16
	Main spindle end face fixed tool	4 pieces	ER11/ER16
	Sub spindle end face fixed tool	4 pieces	ER11/ER16
	Sub spindle end face rotary tools	3 pieces	ER11/ER16
	Sub spindle side rotary tools	4 pieces	ER11/ER16
	Sub spindle O.D. turning tools	2 pieces	12X12mm
Spindles	Main/Sub spindle type	Internal oil cooling electric spindle
	Main/Sub spindle speed	10000rpm/min
	Main/Sub spindle indexing	0.001°
	Main/Sub spindle through hole Dia	26mm
	Main/Sub spindle height	1018.5mm
Motors	Main spindle power(Rated/Max）	2.5kw/3.7kw
	Sub spindle power(Rated/Max）	2.5kw/3.7kw
	Main/Sub spindle rotary tools motor power	1.1kw
	Main spindle side rotary tools speed	ER11*2 pieces	10000rpm/min
	Main spindle side rotary tools speed	ER16*2 pieces	6000rpm/min
	Sub spindle rotary tools speed	Side rotary tools	6000rpm/min
	Sub spindle rotary tools speed	End face rotary tools	6500rpm/min
	Moving axis	6 axis	X1、Y1、Z1、X2、Y2、Z2
	Rapid feeding speed	X1、Y2	24m/min
	Rapid feeding speed	Y1、Z1、X2、Z2	32m/min
	Motor power of moving axis	1.0kw
Others	Parts collector	Short parts	Belt conveyor to collect parts
	Parts collector	Long parts	rear ejection from sub spindle
	Power capacity	15kw
	Air pressure	0.4MPa or above
	Capacity of machining oil tank	250L
	Lathe size	2.4m×1.4m×1.7m
	Lathe weight	3050KG

What is the maximum workpiece diameter capacity for the MA25-6S?
- The maximum workpiece diameter capacity is typically around 25 mm, though exact specifications should be confirmed from the technical data.
How does the machine ensure high centering accuracy?
- The machine uses a 6-axis CNC control system and servo motor driven spindles to achieve high precision and accuracy.
Is the MA25-6S suitable for automated production environments?
- Yes, the machine can be integrated into automated production lines due to its advanced CNC control system.
What type of user interface does the MA25-6S feature?
- The machine is equipped with a user-friendly touch screen interface for easy operation and monitoring.
What are the space requirements for installing the MA25-6S?
- The machine’s compact design makes it suitable for environments with limited floor space.
Can the MA25-6S handle different types of workpieces?
- Yes, the machine is versatile and can handle various cylindrical workpieces within its specified diameter capacity.
