MA25-3Ⅱ

Single spindle centrifugal machine [MA25-3Ⅱ]

No guide sleeve/movable guide sleeve can be switched according to the needs of the workpiece;
Oil-cooled electric spindle is more evenly cooled than air-cooled electric spindle and more stable than mechanical spindle;
Absolute motor, automatic origin search when the machine is turned on and off, saving time, trouble and labor;
Adopt NSK bearings, THK wire gauge/screw, high precision and long life;
The spindle is equipped with C-axis arbitrary indexing positioning as standard, with complete functions and no routine;

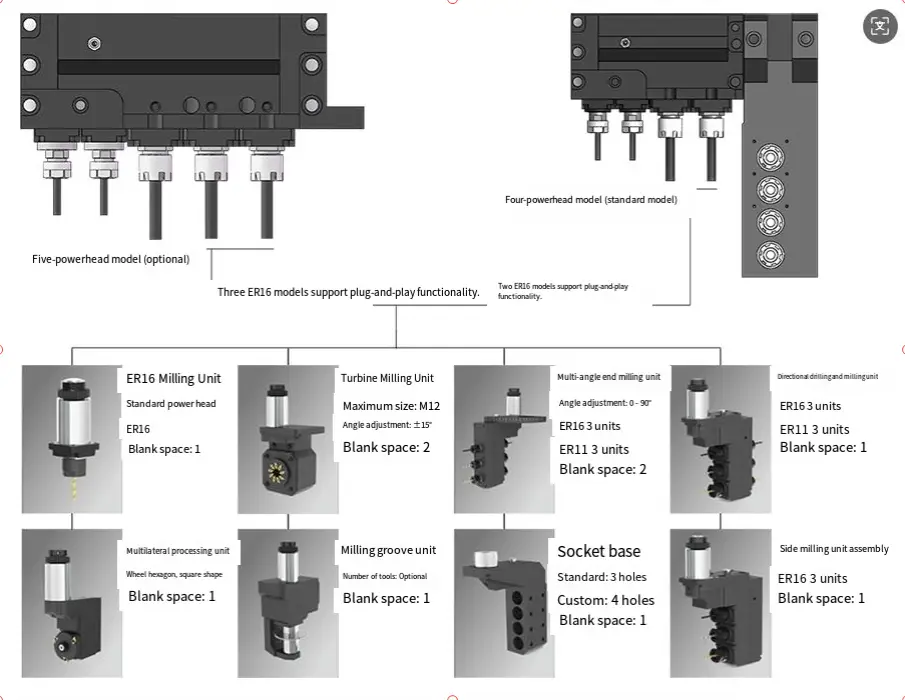

The power head on the side of the spindle supports 2-hole plug-in expansion function;
Standard cut-off detection function;

Share products:

Single spindle design optimized for efficient centrifugal processing
High-speed operation for rapid material separation and processing
Durable construction ensures long-lasting performance and reliability
User-friendly control panel for easy operation and monitoring
Compact design suitable for various industrial applications

The MA25-3Ⅱ is a high-performance single spindle centrifugal machine designed for efficient and rapid processing of materials. Its high-speed operation allows for quick and effective separation, making it ideal for a variety of industrial applications. The machine’s durable construction ensures reliability and longevity, while the user-friendly control panel provides easy operation and monitoring. With its compact design, the MA25-3Ⅱ is suitable for environments with limited space, offering both efficiency and versatility.

Double spindle Swiss CNC lathe MA25-3 II
System	Taiwan SYNTEC	Syntec21TB-E
	Control channel	Single channel
	Minimum setting unit	0.001mm
Machining	Max processing Dia	25 mm
	Max processing length at one time	With guide bush	195mm
		Without guide bush	1:2.5D（Dia:Lenth）
	Main spindle max drilling Dia	Main spindle axial	Φ10mm
	Main spindle max tapping Dia	Main spindle axial	M8
	Power head max drilling Dia	Radial	Φ8mm
	Power head max tapping Dia	Radial	M6

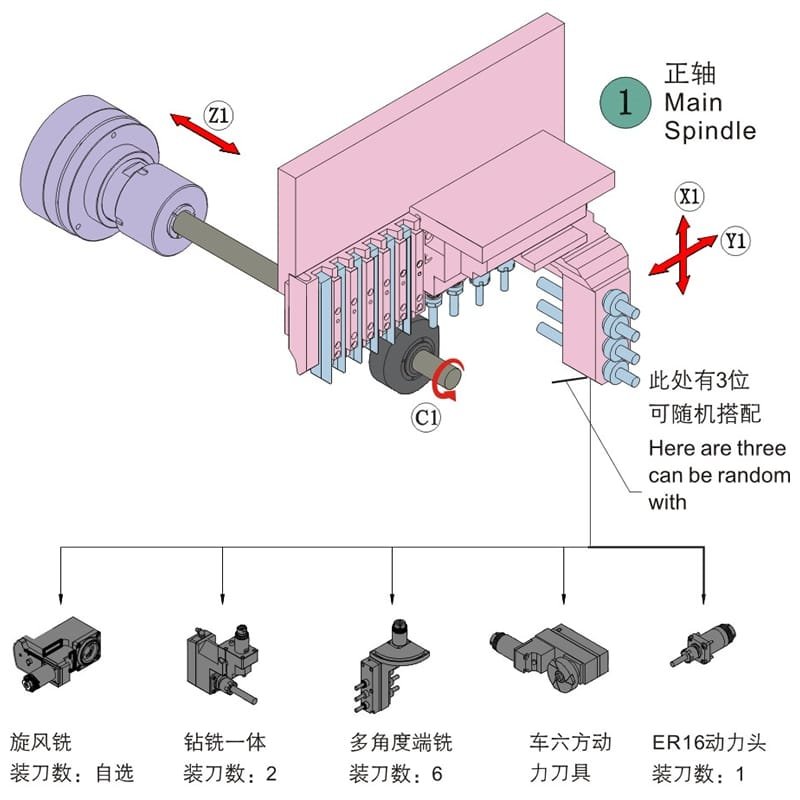

Tool	Tool seat arrangement	Upside tool holder
	Main spindle turning tool	6 pieces	1 Piece 16×16 + 5 pieces 12X12mm
	Main spindle side roatry power head	4 pieces	2 Pieces ER11+2 PiecesER16
	Main spindle end face fixed tool seat	4 pieces	ER11/ER16
Main Spindle	Main spindle type	Built-in oil-cooled electric spindle
	Main spindle speed	10000rpm/min
	Main spindle index	0.001°
	Main spindle hole Dia	26mm
	Main spindle center height	968.5mm
Motor Power	Main Spindle power (rated/maximum)	2.5kw/3.7kw
	Side rotary head motor power	0.75kw
	Side rotary head speed	6000rpm/min
	No. of moving axis	3 axis	X、Y、Z
	Rapid feeding speed	X	24m/min
		Y、Z	32m/min
	Moving axis motor power	0.75kw
Other	Parts receive device	Stretch parts pick up device
	Power capacity	11.2kw
	Air pressure	Above 0.4MPa
	Cutting oil tank capacity	195L
	Machine size(LWH)	1.87m×1.45m×1.65m
	Lathe Weight	1980KG

What is the maximum capacity of the MA25-3Ⅱ?
- The maximum capacity should be confirmed from the technical data, as it varies depending on the specific application.
How does the machine ensure efficient separation?
- The machine uses high-speed centrifugal force to achieve rapid and efficient material separation.
Is the MA25-3Ⅱ suitable for continuous operation?
- Yes, the machine is designed for continuous operation with reliable performance.
What type of control panel does the MA25-3Ⅱ feature?
- The machine is equipped with a user-friendly control panel for straightforward operation and monitoring.
What are the space requirements for installing the MA25-3Ⅱ?
- The machine’s compact design makes it suitable for environments with limited floor space.
Can the MA25-3Ⅱ handle different types of materials?
- Yes, the machine is versatile and can process various materials within its specified capacity.
