Jianke MA12-5II is a high-precision Swiss-type CNC automatic lathe designed for machining small precision parts with a diameter of 1-12mm. It adopts a dual-spindle structure with a maximum spindle speed of 12,000rpm and a sub-spindle speed of 10,000rpm, which can efficiently complete the machining of various complex parts. The equipment is equipped with a 5-axis linkage system, combined with a variety of tool configurations, which can realize a variety of machining processes such as turning, milling, drilling, and tapping. Whether in the aerospace, medical equipment or electronics industry, MA12-5II can provide excellent machining performance and flexibility.
Double Spindle Swiss CNC Lathe MA12-5Ⅱ | |||
System | Japan Mitsubishi | M80 | |
Control channels | Dual channel | ||
Minimum setting unit | 0.001mm | ||
Machining Ability | Max processing diameter | 12 mm | |
Maximum single feeding length | Rotary guide bush | 140mm | |
Without guide bush | 1:2.5D(Dia:Length) | ||
Main spindle max drilling Dia | axial (main spindle) | Φ8mm | |
Main spindle tapping Dia | axial | M6 | |
Rotary tools max drilling Dia | radial | Φ5mm | |
Rotary tools max tapping Dia | radial | M4 | |
Sub spindle max drilling Dia | Axial (sub spindle) | Φ5mm | |
Sub spindle max tapping Dia | axial | M4 | |
Tools | Tool base arrangement | Upper row tool base | |
Main spindle O.D. tools | 6 pieces | 6 pieces 10X10mm | |

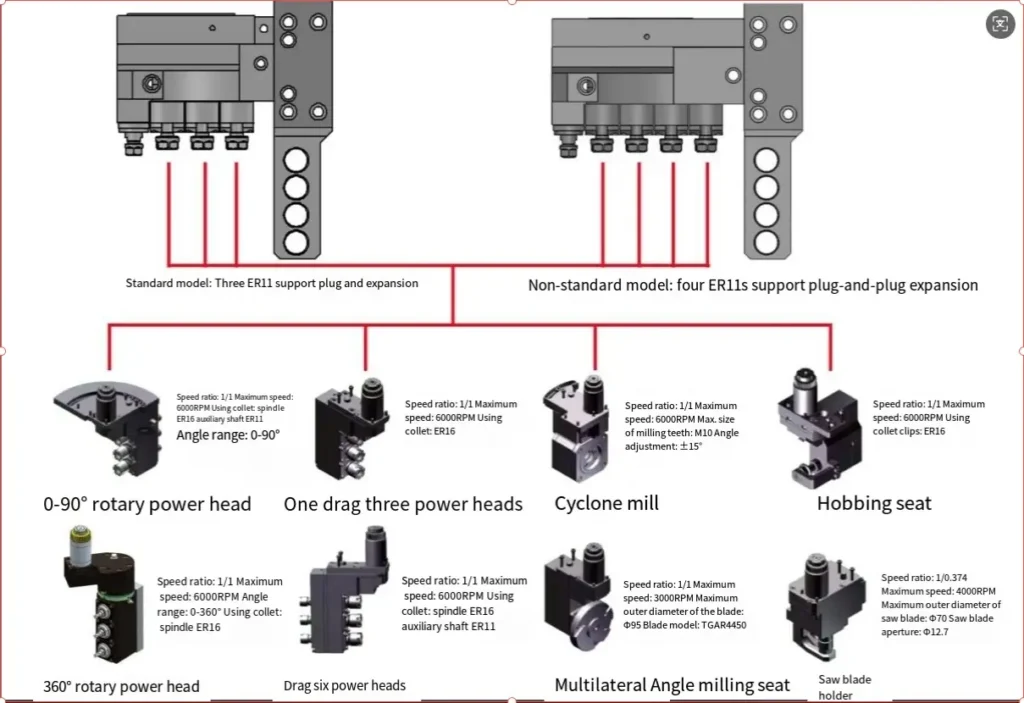

Main spindle side rotary live tools | 4 pieces | 1*ER8+3*ER11 | |
Main spindle end face fixed tool | 4 pieces | ER11 | |
Sub spindle end face fixed tool | 4 pieces | ER11 | |
Spindles | Main/Sub spindle type | Internal oil cooling electric main spindle/Mechanical sub spindle | |
Main/Sub spindle speed | 12000rpm/min(Main spindle)-10000rpm/min(Sub spindle) | ||
Main/Sub spindle indexing | 0.001° | ||
Main/Sub spindle through hole Dia | 14mm | ||
Main/Sub spindle height | 1000mm | ||
Motors | Main spindle power(Rated/Max) | 2.2kw/3.7kw(Electric spindle) | |
Sub spindle power(Rated/Max) | 0.75kw/1.5kw(Mechanical spindle) | ||
Side rotary tools motor power | 1.0kw | ||
Side rotary tools speed | ER8*1 piece | 9000rpm/min | |
ER11*3 pieces | 9000rpm/min | ||
Moving axis | 5 axis | X1、Y1、Z1、X2、Z2 | |
Rapid feeding speed | X1 | 35m/min | |
Y1、Z1、X2、Z2 | 35m/min | ||
Motor power of moving axis | 1.0kw | ||
Others | Parts collector | Short parts | Belt conveyor to collect parts |
Long parts | rear ejection from sub spindle | ||
Power capacity | 10kw | ||
Air pressure | 0.4MPa以上 | ||
Capacity of machining oil tank | 180L | ||
Lathe size | 2.0m×1.4m×1.7m | ||
Lathe weight | 1900KG |
Q: What is the maximum machining diameter of MA12-5II?
A: The maximum machining diameter of MA12-5II is 12mm.
Q: Does this machine support guide sleeve-free machining?
A: Yes, MA12-5II supports two machining modes: rotary guide sleeve and guide sleeve-free, which can be flexibly selected according to needs.
Q: How long is the warranty period of the machine?
A: Jianke provides a 1-year warranty service for MA12-5II.
Q: Is the machine equipped with a parts collection system?
A: Yes, MA12-5II is equipped with a parts collection system. Short parts are collected by conveyor belts, and long parts can be discharged from the rear of the sub-spindle.
