The Dual Spindle Centering Machine DT38-5Ⅱ is a powerful CNC machine engineered for precision and efficiency. Featuring a dual spindle design and 5-axis control, it allows users to perform intricate machining tasks on two parts simultaneously, cutting down production times. The machine is ideal for manufacturers looking to improve productivity without compromising on accuracy. With a space-efficient design and intuitive control system, it offers versatility for various industrial applications.
Double Spindle Swiss CNC Lathe DT38-5 II | |||
System | Taiwan SYNTEC | Syntec210TB-A | |
Control channels | Dual channel | ||
Minimum setting unit | 0.001mm | ||
Machining Ability | Max processing diameter | 38 mm | |
Maximum single feeding length | Rotary guide bush | 150mm(Optional) | |
Without guide bush | 1:2.5D(Dia:Length) | ||
Main spindle max drilling Dia | axial(main spindle) | Φ23mm | |
Main spindle tapping Dia | axial | M16 | |
Rotary tools max drilling Dia | radial | Φ10mm | |
Rotary tools max tapping Dia | radial | M8 | |
Sub spindle max drilling Dia | Axial(sub spindle) | Φ10mm | |
Sub spindle max tapping Dia | axial | M8 | |
Tools | Tool base arrangement | Gantry type | |
Main spindle O.D. tools | 7 pieces | 16X16mm | |

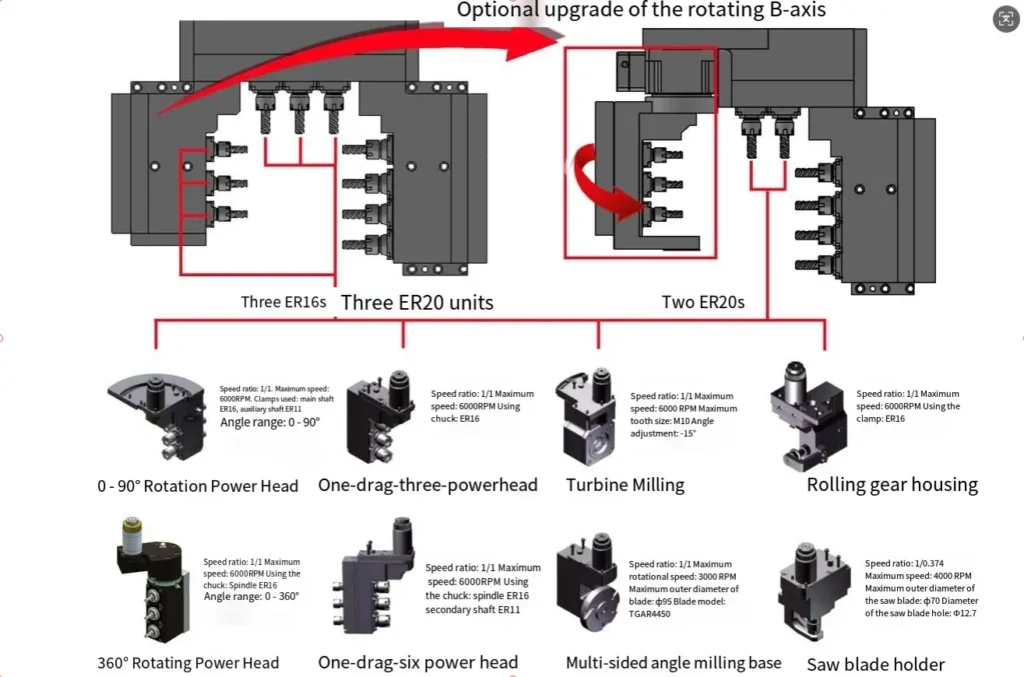

Main spindle side rotary live tools | 10 pieces | 7*ER20+3*ER16 | |
Main spindle end face fixed tools base | 5 pieces | 2*ER20+3*ER16 | |
Sub spindle end face fixed tool base | 4 pieces | 1*ER20+3*ER16 | |
Spindles | Main/Sub spindle type | Internal oil cooling electric spindle | |
Main/Sub spindle speed | 6000rpm/min | ||
Main/Sub spindle indexing | 0.001° | ||
Main/Sub spindle through hole Dia | 44mm | ||
Main/Sub spindle height | 1090mm | ||
Motors | Main spindle power(Rated/Max) | 11kw/18.5kw | |
Sub spindle power(Rated/Max) | 11kw/18.5kw | ||
Main spindle rotary tools motor power | 3.1kw | ||
Main spindle side rotary tools speed | ER16*3 pieces | 8000rpm/min | |
ER20*7 pieces | 6000rpm/min | ||
Sub spindle rotary tools speed | Side rotary tools | 7500rpm/min | |
End face rotary tools | 8000rpm/min | ||
Moving axis | 5 axis | X1、Y1、Z1、X2、Z2 | |
Rapid feeding speed | X1 | 24m/min | |
Y1、Z1、X2、Z2 | 32m/min | ||
Motor power of moving axis | 1.1kw | ||
Others | Parts collector | Short parts | Belt conveyor to collect parts |
Long parts | rear ejection from sub spindle | ||
Power capacity | 34.8kw | ||
Air pressure | 0.4MPa以上 | ||
Capacity of machining oil tank | 340L | ||
Lathe size | 2.6m×1.5m×2.28m | ||
Lathe weight | 3900KG |
Q: What is the maximum diameter of workpieces that the machine can process?
A: The DT38-5Ⅱ can process workpieces with a diameter of up to 38mm.
Q: How does the dual spindle system improve productivity?
A: The dual spindle system allows two parts to be machined at the same time, reducing cycle time and increasing output.
Q: What types of materials can be processed on the DT38-5Ⅱ?
A: It can process a variety of materials, including metals and plastics.
Q: Does the machine require special training to operate?
A: The machine is equipped with a user-friendly interface, making it easy to operate with minimal training.
Q: Is this machine suitable for precision machining?
A: Yes, the DT38-5Ⅱ is designed for high-precision machining with its advanced 5-axis control.
Q: Can this machine be used in small workshops?
A: Yes, its compact design makes it suitable for workshops with limited space.
