Definition and Basic Motion Principles of 5-Axis CNC Machines

Have you ever wondered how those complex and precise parts in modern manufacturing are efficiently and accurately machined? The answer often points to a high-end piece of equipment—the 5-axis CNC machine. As the “multi-talented” member of the CNC machine family, 5-axis CNC machine rely on the flexible coordination of their five motion axes to complete complex multi-surface and multi-angle machining tasks in a single setup, significantly improving production efficiency and machining accuracy. Whether it’s aircraft engine blades in aerospace or complex molds in automotive manufacturing, 5-axis CNC machines play an irreplaceable role.

This article will take you deep into understanding the definition of 5-axis CNC machines and their basic motion principles, particularly focusing on how the three linear axes (XYZ) and two rotary axes (B and C) work together. We’ll also explore their structural types, application advantages, and industry applications to help you gain a comprehensive understanding of this advanced technology.

What is a 5-Axis CNC Machine?

Simply put, a 5-axis CNC machines is a computer numerical control machine tool capable of simultaneous movement along five different axes. It includes three basic linear axes:

• X-axis: Left and right directional movement
• Y-axis: Forward and backward directional movement
• Z-axis: Up and down directional movement

Plus two rotary axes, commonly referred to as:

• B-axis: Rotation around the Y-axis (tilting from left to right)
• C-axis: Rotation around the Z-axis (horizontal rotation)

This combination allows tools or workpieces to move flexibly in multiple angles and directions in space, greatly expanding the degrees of freedom for machining.

Compared to traditional 3-axis CNC machines, 5-axis machines can complete machining on more surfaces in a single setup, avoiding errors and time waste caused by multiple setups. They are particularly suitable for machining complex surfaces and intricately shaped parts, such as aircraft engine blades and medical device components.

Basic Motion Principles of CNC Machines

The motion principles of 5-axis machines can be divided into two parts: linear motion of the three linear axes and rotational motion of the two rotary axes.

XYZ Axes (Linear Motion)

• X-axis handles left-right movement of the tool or workpiece
• Y-axis handles forward-backward movement
• Z-axis handles up-down movement

B-axis and C-axis (Rotational Motion)

• B-axis rotates around the Y-axis, typically achieving tilting actions of the tool or workpiece
• C-axis rotates around the Z-axis, achieving horizontal rotation

Through the coordinated movement of these five axes, 5-axis CNC Lathe can achieve complex spatial path machining. For example, when machining a complex curved surface, the tool can rotate around the B and C axes to contact the workpiece surface at optimal angles, ensuring cutting efficiency and surface quality.

Additionally, 5-axis machines employ advanced interpolation algorithms to achieve multi-axis coordinated control, ensuring smooth and precise tool paths. RTCP (Rotation Tool Center Point) technology further optimizes the relative position between the tool and workpiece, reducing errors.

Main Structural Types of 5-Axis CNC Machines

5-axis machines have diverse structural designs, with several common types including:

Application Advantages of 5-Axis CNC Machines

Why are more and more manufacturing companies choosing 5-axis CNC machines? The reason is simple—5-axis machining brings significant advantages:

• Complete Multi-Surface Machining in Single Setup
  Eliminates positioning errors and time waste from traditional multiple setups, improving machining efficiency and accuracy.
• Ability to Use Shorter Cutting Tools
  Flexible tool inclination angles reduce vibration, improving tool life and machined surface quality.
• Easier Machining of Complex Parts
  Suitable for complex surfaces, deep holes, inclined surfaces, and other difficult-to-machine features, meeting high standards in aerospace, automotive, medical, and other industries.
• Reduced Manual Intervention and Error Rates
  High automation reduces human operational errors, ensuring product consistency.
• Saves Production Time and Costs
  Completes complex machining in one operation, shortening production cycles and reducing overall manufacturing costs.

Common Application Scenarios for CNC Machines

5-axis CNC machines have very wide application fields. Here are several typical industries and their machining characteristics:

• Aerospace
  Aircraft engine blades, complex fuselage structural components, etc., requiring extremely high precision and complex surface machining capabilities.
• Automotive Manufacturing
  Engine blocks, transmission components, mold manufacturing, etc., where 5-axis machining improves production efficiency and part quality.
• Medical Equipment
  Artificial joints, dental implants, surgical instruments, and other complex precision parts manufacturing.
• Mold Manufacturing
  High-precision machining of complex surface molds, shortening mold manufacturing cycles.
• Precision Tool Manufacturing
  Production of high-precision fixtures, measuring tools, etc., supporting other high-end manufacturing industries.

Selection and Considerations for 5-Axis CNC Machines

Selecting the right 5-axis CNC machine requires considering several key factors:

• Complexity and Size of Machined Parts
  Large complex parts are suitable for tool rotation types, while smaller parts are suitable for table rotation types.
• Material Types
  Hard materials (such as titanium alloys, stainless steel) require machines with higher rigidity and power.
• Production Volume
  Large volume production recommends 5-axis machines for improved efficiency; small batches or simple parts may consider 3-axis machines.
• Control System and Programming Capabilities
  5-axis machine programming is complex, requiring professional technical personnel or advanced CAM software support.
• Budget and After-Sales Service
  Equipment investment is substantial; selecting brands with good after-sales and technical support is more prudent.

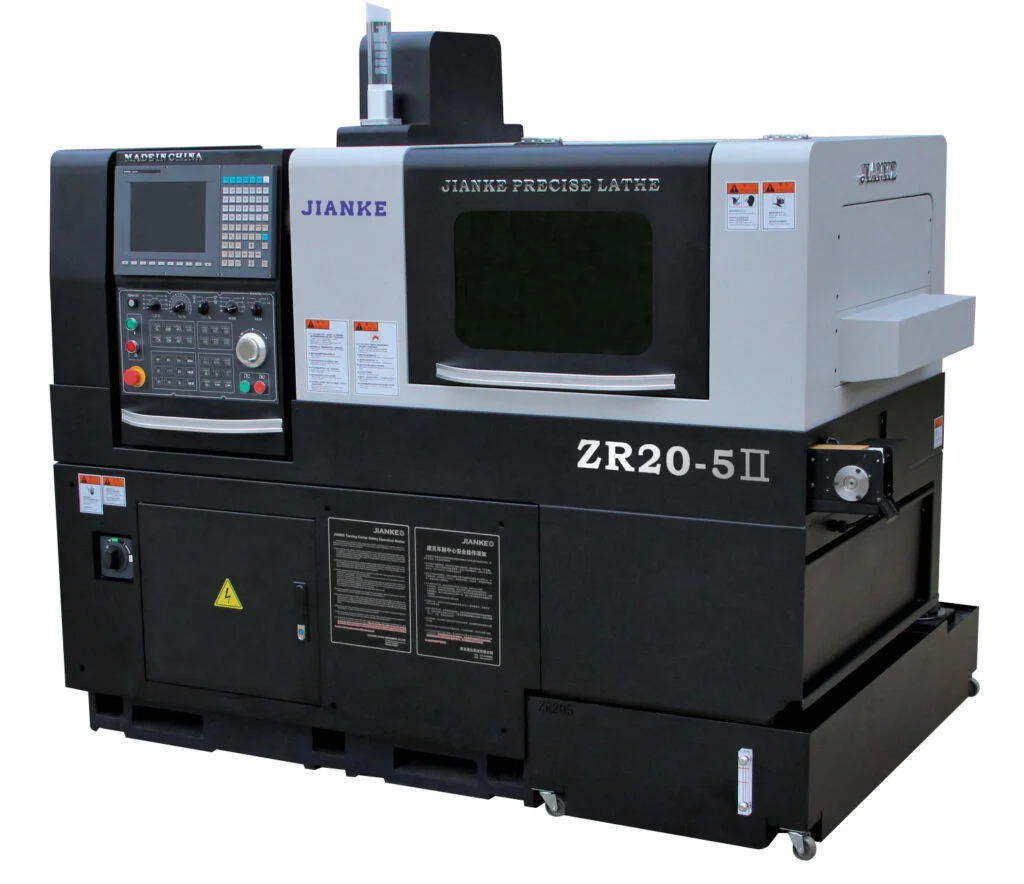

If you’re looking for an advanced CNC machine that can improve machining efficiency and ensure machining accuracy, a CNC Lathe is undoubtedly a worthwhile investment. Please contact us to learn more about 5-axis machine models and customization solutions. Let us help you upgrade your manufacturing capabilities and gain competitive market advantages!
